Mixer / Agitator Models PG, PGH, PTS, PGHR Gear Drive

TOP ENTRY GEAR DRIVE PORTABLE MIXERS

PLG gear drive mixing equipment PLG Industrial Mixer PHG gear drive industrial mixer
PHGR gear drive agitator
PLGA Mixer - Economy
PLG Mixer - Economy
PHG Mixer - Heavy Duty
PHGR Flange Mount Mixer - Heavy Duty

Promix PLG Gear Drive Economy Series industrial mixers have mounting hardware pre-set for the correct positioning in un-baffled tanks which comes with either C-Clamp or Fixed Plate.

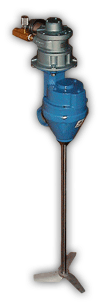

Promix PHG Gear Drive Heavy Duty Mixer is equipped with a 1" diameter shaft, up to 60" lengths as standard and comes with either Swivel C-Clamp or Cup Plate.

Mixer is designed with a drive chuck, which is built for heavy duty application, and easy shaft removal with permanently sealed bearings, providing several years of maintenance free service.

PHGR Gear Drive Heavy Duty Flange Mount Mixer is a fixed mount mixer with a standard ANSI flange that can be used to bolt down on top of tank. Other Fixed mount options available.

Electric motors available:
Single phase:115/230v
Three phase: 230/460, 575v
and Explosion proof.


Motor

Model
H.P.
Type
Voltage
Phase
Shaft Size
RPM
Impellers
Drive
Price US. Dollars
PLGA75
3/4
Air
n/a
n/a

5/8" x 36"

60-600
Hydrofoil-10"
Gear Drive
$2010.00
PLGA150
1-1/2
Air
n/a
n/a

5/8" x 36"

60-600
Hydrofoil-12"
Gear Drive
$3100.00
PLG25-33
1/3
Electric-TEFC
115/230
1

5/8" x 36"

350
Hydrofoil-8"
Gear Drive
$2090.00
PLG33
1/3
Electric-TEFC
115/230
1

5/8" x 36"

350
Hydrofoil-10"
Gear Drive
$2090.00
PLG50
1/2
Electric-TEFC
115/230
1

5/8" x 36"

350
Hydrofoil-12"
Gear Drive
$2105.00
PLGV33
1/3
Electric-Variable
115/230
1

5/8" x 36"

350
Hydrofoil-10"
Gear Drive
$2985.00
PLGV50
1/2
Electric-Variable
115/230
1

5/8" x 36"

350
Hydrofoil-12"
Gear Drive
$3100.00
PHGA75
3/4
Air
n/a
n/a

1" x 60" max.

60-600
Hydrofoil-10"
Gear Drive
$4500.00
PHGA150
1-1/2
Air
n/a
n/a

1" x 60" max.

60-600
Hydrofoil-12"
Gear Drive
$5000.00
PHGA400
4
Air
n/a
n/a

1.25" x 60" max.

60-600
Hydrofoil-14.5"
Gear Drive
$8000.00
PHG25-33
1/3
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-10"
Gear Drive
$2300.00
PHG33
1/3
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-12"
Gear Drive
$2300.00
PHG50
1/2
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-13"
Gear Drive
$2795.00
PHG75
3/4
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-14.5"
Gear Drive
$3199.00
PHG100
1
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-15"
Gear Drive
$3520.00
PHG150
1-1/2
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-16.5"
Gear Drive
$4050.00
PHG200
2
Electric-TEFC
230/460
3

1" x 60" max.

350
Hydrofoil-17"
Gear Drive
$5390.00
PHG300
3
Electric-TEFC
Available in PHGR300 fixed mount only
PHGV33
1/3
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-12"
Gear Drive
$4310.00
PHGV50
1/2
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-13"
Gear Drive
$4310.00
PHGV75
3/4
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-14.5"
Gear Drive
$4807.00
PHGV100
1
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-15"
Gear Drive
$4707.00
PHGV150
1-1/2
Electric-Variable
230
1

1" x 60" max.

350
Hydrofoil-16.5"
Gear Drive
$5358.00
PHGV200
2
Electric-Variable
230
1

1" x 60" max.

350
Hydrofoil-17"
Gear Drive
$8340.00
PHGV300
3
Electric-Variable
Available in PHGRV300 fixed mount only
PHGRA75
3/4
Air
n/a
n/a

1" x 60" max.

60-600
Hydrofoil-10"
Gear Drive
$5515.00
PHGRA150
1-1/2
Air
n/a
n/a

1" x 60" max.

60-600
Hydrofoil-12"
Gear Drive
$9480.00
PHGRA400
4
Air
n/a
n/a

1.25" x 70" max.

60-600
Hydrofoil-14.5"
Gear Drive
$14645.00
PHGR25-33
1/3
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-10"
Gear Drive
$4380.00
PHGR33
1/3
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-12"
Gear Drive
$4380.00
PHGR50
1/2
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-13"
Gear Drive
$4380.00
PHGR75
3/4
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-14.5"
Gear Drive
$4380.00
PHGR100
1
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-15"
Gear Drive
$4380.00
PHGR150
1-1/2
Electric-TEFC
115/230
1

1" x 60" max.

350
Hydrofoil-16.5"
Gear Drive
$5190.00
PHGR200
2
Electric-TEFC
230/460
3

1.25" x 70" max.

350
Hydrofoil-17"
Gear Drive
$5190.00
PHGR300
3
Electric-TEFC
230/460
3

1.25" x 70" max.

350
Hydrofoil-18"
Gear Drive
$5800.00
PHGRV33
1/3
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-12"
Gear Drive
$5800.00
PHGRV50
1/2
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-13"
Gear Drive
$5800.00
PHGRV75
3/4
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-14.5"
Gear Drive
$5800.00
PHGRV100
1
Electric-Variable
115
1

1" x 60" max.

350
Hydrofoil-15"
Gear Drive
$5800.00
PHGRV150
1-1/2
Electric-Variable
230
1

1" x 60" max.

350
Hydrofoil-16.5"
Gear Drive
$9500.00
PHGRV200
2
Electric-Variable
230
1

1.25" x 70" max.

350
Hydrofoil-17"
Gear Drive
$9500.00
PHGRV300
3
Electric-Variable
230
1

1.25" x 70" max.

350
Hydrofoil-18"
Gear Drive
$11500.00




BUNG MOUNT MIXERS - PLGD Gear Drive

Manufactured using high quality materials and components these bung mount mixers come with a threaded 2" bung adapter which easily screws onto drum bung.

PLGD/PLGDA come with a standard 2" bung adapter.

PLGD mixers comes with cast iron motor.

PLGDV and PSDV/PSGDV series bung mixers comes with a digital speed control.


*CAST IRON Motor

Model
H.P.
Type
Voltage
Phase
Shaft Size
RPM
Folding impeller with center bung mount
Drive
Price US. Dollars
PLGDA75
3/4
Air
n/a
n/a

5/8" x 32"

30-600
One folding impeller - 9"
Gear Drive
$3600.00
PLGDA150
1-1/2
Air
n/a
n/a

5/8" x 32"

30-600
One folding impeller - 10"
Gear Drive
$3600.00
PLGD50
1/2
Electric-TEFC
115/230
1

5/8" x 32"

350
One folding impeller - 10"
Gear Drive
$2630.00
PLGD75
3/4
Electric-TEFC
115/230
1

5/8" x 32"

350
One folding impeller - 12"
Gear Drive
$2770.00
PLGDV50
1/2
Electric-Variable
115/230
1

5/8" x 32"

350
One folding impeller - 10"
Gear Drive
$2900.00
PLGDV75
3/4
Electric-Variable
115/230
1

5/8" x 32"

350
One folding impeller - 12"
Gear Drive
$3600.00



For 2" bung on side of tank largest folding impeller is 4" dia. please contact us for quote





PLATE MOUNT MIXERS - PGP Gear Drive

PGP Gear drive plate mount mixer
PGP Gear Drive Mixer with plate

Manufactured using high quality materials and components the PGP mixers are designed for fixed mounting application.

Comes with square plate and 4 holes for mounting.

Electric motors available:
Single phase:115/230v
Three phase: 230/460, 575v
Explosion proof and stainless steel washdown


Motor

Model
H.P.
Type
Voltage
Phase
Shaft Size
RPM
Propellers
 Drive
Price US. Dollars
PGP75
3/4
Air
n/a
n/a

5/8" x 36"

60-600
Hydrofoil-10"
 Gear Drive
$3310.00
PGPA150
1-1/2
Air
n/a
n/a

5/8" x 36"

60-600
Hydrofoil-12"
Gear Drive
$3310.00
PGP33
1/3
Electric-TEFC
115/230
1

5/8" x 36"
350
Hydrofoil-10"
Gear Drive
$2600.00
PGP50
1/2
Electric-TEFC
115/230
1

5/8" x 36"

350
Hydrofoil-12"
Gear Drive
$2600.00
PGPV33
1/3
Electric-Variable
115/230
1

5/8" x 36"

350
Hydrofoil-10"
Gear Drive
$3310.00
PGPV50
1/2
Electric-Variable
115/230
1

5/8" x 36"

350
Hydrofoil-12"
Gear Drive
$3310.00



HEAVY DUTY RIGHT ANGLE GEAR DRIVE MIXERS

Promix Right Angle Mixer
PRG Mixer

Manufactured using high quality materials and components.

The PRG Gear Drive Heavy Duty mixers are fixed mount mixers that are bolted down to the tank. Other fixed mount options available such as Angle Riser, ANSI Flange, etc.

Many output RPM / gear ratios are available please contact us.

Electric motors available:
Single phase:115/230v
Three phase: 230/460, 575v
Explosion proof and stainless steel washdown


Motor

Model
H.P.
Type
Input
Voltage
Phase
Shaft Size
Dia. x Length
RPM
Impellers
Price US. Dollars
PRG100
1
Electric-TEFC
220/460
3

1.5" x 72"

175
22" hydrofoil
$5000.00
PRG200
2
Electric-TEFC
220/460
3

1.5" x 84"

118
27" hydrofoil
$6900.00
PRG300
3
Electric-TEFC
220/460
3

1.75" x 96"

118
30" hydrofoil
$8700.00

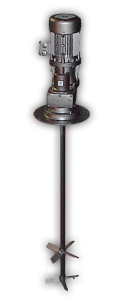

PTS SERIES GEAR DRIVE RAPID MIXER

PTS series top or side entry mixers are capable of handling large batches. These industrial mixers / agitators are assembled with heat treated high quality helical gears with double reduction feature and permanently lubricated oversized tapered roller bearings. Single or three phase TEFC motors are standard equipment.

These mixers / agitators could be customized with a range of Horse Power, output speeds, shaft lengths, shaft diameters, 3 or 4-bladed turbines and high efficiency hydrofoil impellers to suit your application. Wetted parts are 316 stainless steel construction.

Optional gear boxes with food grade lubricant, paint and dry well construction rated for 24 hours per day operation are also available.

PTS industrial mixers provide years of trouble free reliability for open and closed tank applications. These mixers are available with plate, Angle riser, ANSI flange mounting options along with stuffing boxes or mechanical seals.

PTS mixing equipment

PTS liquid mixer

PTS agitator

PTS electrical gear drive mixer
PTS Mixer

Please call for quote.
