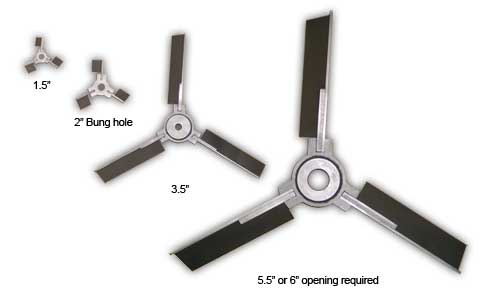

3 and 4 Bladed Folding Impellers
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Prices For: 3 Bladed Folding Impeller |
||||||
|---|---|---|---|---|---|---|
3 Bladed Folding - 316SS |
Diameter | Bore Size |
Model # |
Material |
Minimum Opening Needed |
Price US. Dollars |
| 2.5" | 5/16" | 15-25CP3-31 |
316SS |
1.5" dia. or larger |
$147.00 |
|
| 2.5" | 3/8" | 15-25CP3-37 |
$147.00 |
|||
| 2.5" | 1/2" | 15-25CP3-50 |
$147.00 |
|||
| 3" | 5/16" | 15-3CP3-31 |
$147.00 |
|||
| 3" | 3/8" | 15-3CP3-37 |
$147.00 |
|||
| 3" | 1/2" | 15-3CP3-50 |
$147.00 |
|||
 |
||||||
2" Bung or larger - 3 Bladed Folding Impeller - 4" to 6" dia. OPEN - 316SS
2" Bung or larger - 3 Bladed Folding Impeller - 7" to 12" dia. OPEN - 316SS |
4" | 1/2" | 20-4CP3-50 |
316SS | 2" bung or larger |
$113.00 |
| 4" | 5/8" | 20-4CP3-62 |
$113.00 |
|||
| 4" | 3/4" | 20-4CP3-75 |
$113.00 |
|||
| 5" | 1/2" | 20-5CP3-50 |
$189.00 |
|||
| 5" | 5/8" | 20-5CP3-62 |
$189.00 |
|||
| 5" | 3/4" | 20-5CP3-75 |
$189.00 |
|||
| 6" | 1/2" | 20-6CP3-50 |
$219.00 |
|||
| 6" | 5/8" | 20-6CP3-62 |
$219.00 |
|||
| 6" | 3/4" | 20-6CP3-75 |
$219.00 |
|||
| 7" | 1/2" | 20-7CP3-50 |
$249.00 |
|||
| 7" | 5/8" | 20-7CP3-62 |
$249.00 |
|||
| 7" | 3/4" | 20-7CP3-75 |
$249.00 |
|||
| 8" | 1/2" | 20-8CP3-50 |
$265.00 |
|||
| 8" | 5/8" | 20-8CP3-62 |
$265.00 |
|||
| 8" | 3/4" | 20-8CP3-75 |
$265.00 |
|||
| 9.5" | 5/8" | 20-9CP3-62 |
$298.00 |
|||
| 9.5" | 3/4" | 20-9CP3-75 |
$298.00 |
|||
| 10" | 5/8" | 20-10CP3-62 |
$279.00 |
|||
| 10" | 3/4" | 20-10CP3-75 |
$279.00 |
|||
| 12" | 5/8" | 20-12CP3-62 |
$328.00 |
|||
| 12" | 3/4" | 20-12CP3-75 |
$328.00 |
|||
|
||||||
3.5" dia. and 5.5" dia. or larger - 3 Bladed Folding Impeller OPEN - 316SS
|
8" | 5/8" | 35-L8CP3-62 |
316SS | 3.5" dia. and 5.5" dia. or larger 3.5" bulk tank, 6" bulk tank and 6" IBC Tote opening |
$385.00 |
| 8" | 3/4" | 35-L8CP3-75 |
$385.00 |
|||
| 8" | 7/8" | 35-L8CP3-87 |
$385.00 |
|||
| 8" | 1" | 35-L8CP3-100 |
$385.00 |
|||
| 8" | 1.25" | 35-L8CP3-125 |
$385.00 |
|||
| 9.5" | 3/4" | 35-L9CP3-75 |
$385.00 |
|||
| 9.5" | 7/8" | 35-L9CP3-87 |
$385.00 |
|||
| 9.5" | 1" | 35-L9CP3-100 |
$385.00 |
|||
| 9.5" | 1.25" | 35-L9CP3-125 |
$385.00 |
|||
| 10" | 5/8" | 35-L10CP3-62 |
$350.00 |
|||
| 10" | 3/4" | 35-L10CP3-75 |
$350.00 |
|||
| 10" | 7/8" | 35-L10CP3-87 |
$350.00 |
|||
| 10" | 1" | 35-L10CP3-100 |
$350.00 |
|||
| 10" | 1.25" | 35-L10CP3-125 |
$350.00 |
|||
| 12" | 5/8" | 35-L12CP3-62 |
$425.00 |
|||
| 12" | 3/4" | 35-L12CP3-75 |
$425.00 |
|||
| 12" | 7/8" | 35-L12CP3-87 |
$425.00 |
|||
| 12" | 1" | 35-L12CP3-100 |
$425.00 |
|||
| 12" | 1.25" | 35-L12CP3-125 |
$425.00 |
|||
| 14" | 5/8" | 35-L14CP3-62 |
$533.00 |
|||
| 14" | 3/4" | 35-L14CP3-75 |
$533.00 |
|||
| 14" | 7/8" | 35-L14CP3-87 |
$533.00 |
|||
| 14" | 1" | 35-L14CP3-100 |
$533.00 |
|||
| 14" | 1.25" | 35-L14CP3-125 |
$533.00 |
|||
|
||||||
5.5" dia or larger - 3 Bladed Folding Impeller OPEN - 316SS |
16" | 1" | 55-6L16CP3-100 |
316SS | 5.5" dia. or larger 6" bulk tank and 6" IBC Tote opening |
$1125.00 |
| 16" | 1.25" | 55-6L16CP3-125 |
$1125.00 |
|||
| 16" | 1.5" | 55-6L16CP3-150 |
$1125.00 |
|||
| 16" | 2" | 55-6L16CP3-200 |
$1125.00 |
|||
| 18" | 1" | 55-6L18CP3-100 |
$1125.00 |
|||
| 18" | 1.25" | 55-6L18CP3-125 |
$1125.00 |
|||
| 18" | 1.5" | 55-6L18CP3-150 |
$1125.00 |
|||
| 18" | 2" | 55-6L18CP3-200 |
$1125.00 |
|||
| 20" | 1" | 55-6L20CP3-100 |
$1125.00 |
|||
| 20" | 1.25" | 55-6L20CP3-125 |
$1125.00 |
|||
| 20" | 1.5" | 55-6L20CP3-150 |
$1125.00 |
|||
| 20" | 2" | 55-6L20CP3-200 |
$1125.00 |
|||
| 24" | 1" | 55-6L24CP3-100 |
$1125.00 |
|||
| 24" | 1.25" | 55-6L24CP3-125 |
$1125.00 |
|||
| 24" | 1.5" | 55-6L24CP3-150 |
$1125.00 |
|||
| 24" | 2" | 55-6L24CP3-200 |
$1125.00 |
|||
|
||||||
6" dia or larger - 3 Bladed Folding Impeller OPEN - 316SS |
16" | 1" | 60-9L16CP3-100 |
316SS | 6" dia. or larger |
$1125.00 |
| 16" | 1.25" | 60-9L16CP3-125 |
$1125.00 |
|||
| 16" | 1.5" | 60-9L16CP3-150 |
$1125.00 |
|||
| 16" | 2" | 60-9L16CP3-200 |
$1125.00 |
|||
| 16" | 2.5" | *60-9L16CP3-250 |
$1125.00 |
|||
| 18" | 1" | 60-9L18CP3-100 |
$1125.00 |
|||
| 18" | 1.25" | 60-9L18CP3-125 |
$1125.00 |
|||
| 18" | 1.5" | 60-9L18CP3-150 |
$1125.00 |
|||
| 18" | 2" | 60-9L18CP3-200 |
$1125.00 |
|||
| 18" | *2.5" | *60-9L18CP3-250 |
$1125.00 |
|||
| 20" | 1" | 60-9L20CP3-100 |
$1125.00 |
|||
| 20" | 1.25" | 60-9L20CP3-125 |
$1125.00 |
|||
| 20" | 1.5" | 60-9L20CP3-150 |
$1125.00 |
|||
| 20" | 2" | 60-9L20CP3-200 |
$1125.00 |
|||
| 20" | *2.5" | *60-9L20CP3-250 |
$1125.00 |
|||
| 24" | 1" | 60-9L24CP3-100 |
$1125.00 |
|||
| 24" | 1.25" | 60-9L24CP3-125 |
$1125.00 |
|||
| 24" | 1.5" | 60-9L24CP3-150 |
$1125.00 |
|||
| 24" | 2" | 60-9L24CP3-200 |
$1125.00 |
|||
| 24" | *2.5" | *60-9L24CP3-250 |
$1125.00 |
|||
| 24" | *3" | *60-9L24CP3-300 |
$1125.00 |
|||
Prices subject to change without notice.
4 Bladed Folding Impellers
- Minimum entry 3.5" dia. hole or larger - used with 3.5" bung holes, 3.5" bulk tank, 6" bulk tank, 6" IBC TOTE opening. Folding impellers for 3.5" bung holes can have bore sizes up to 1.5" dia. and can have multiple folding impellers on single shaft.
- Minimum entry 5.5" dia. hole or larger - used with 6" bulk tank and 6" IBC TOTE opening. Folding impeller can have bore sizes up to 2.25" dia. and can have multiple folding impellers on single shaft. 2.5" bore size is also available if using single impeller at bottom of the shaft. Commonly used with 6" tote openings. For other bore sizes please contact us.
- Minimum entry 6" dia. hole or larger folding impeller can have bore sizes up to 2.5" dia. and can have multiple folding impellers on a single shaft. 3" bore size is also available if using single impeller at bottom of the shaft. Commonly used with larger dia. mixing shaft and require an opening 6" dia. or larger. For other bore sizes please contact us.
- These 4 bladed folding / collapsible impellers are 316L stainless steel construction and set screws are standard.
| Prices For: 4 Bladed Folding Impeller |
||||||
|---|---|---|---|---|---|---|
3.5" dia. and 5.5" dia. or larger - 4 Bladed Folding Impeller OPEN - 316SS |
Diameter | Bore Size |
Model # |
Material |
Minimum Opening Needed |
Price US. Dollars |
| 8" | 5/8" | 35-L8CP4-62 |
316SS | 3.5" dia. and 5.5" dia. or larger 3.5" bulk tank, 6" bulk tank and 6" IBC Tote opening |
$542.00 |
|
| 8" | 3/4" | 35-L8CP4-75 |
$542.00 |
|||
| 8" | 7/8" | 35-L8CP4-87 |
$542.00 |
|||
| 8" | 1" | 35-L8CP4-100 |
$542.00 |
|||
| 8" | 1.25" | 35-L8CP4-125 |
$542.00 |
|||
| 9.5" | 5/8" | 35-L9CP4-62 |
$542.00 |
|||
| 9.5" | 3/4" | 35-L9CP4-75 |
$542.00 |
|||
| 9.5" | 7/8" | 35-L9CP4-87 |
$542.00 |
|||
| 9.5" | 1" | 35-L9CP4-100 |
$542.00 |
|||
| 9.5" | 1.25" | 35-L9CP4-125 |
$542.00 |
|||
| 10" | 5/8" | 35-L10CP4-62 |
$507.00 |
|||
| 10" | 3/4" | 35-L10CP4-75 |
$507.00 |
|||
| 10" | 7/8" | 35-L10CP4-87 |
$507.00 |
|||
| 10" | 1" | 35-L10CP4-100 |
$507.00 |
|||
| 10" | 1.25" | 35-L10CP4-125 |
$507.00 |
|||
| 12" | 5/8" | 35-L12CP4-62 |
$608.00 |
|||
| 12" | 3/4" | 35-L12CP4-75 |
$608.00 |
|||
| 12" | 7/8" | 35-L12CP4-87 |
$608.00 |
|||
| 12" | 1" | 35-L12CP4-100 |
$608.00 |
|||
| 12" | 1.25" | 35-L12CP4-125 |
$608.00 |
|||
| 14" | 5/8" | 35-L14CP4-62 |
$710.00 |
|||
| 14" | 3/4" | 35-L14CP4-75 |
$710.00 |
|||
| 14" | 7/8" | 35-L14CP4-87 |
$710.00 |
|||
| 14" | 1" | 35-L14CP4-100 |
$710.00 |
|||
| 14" | 1.25" | 35-L14CP4-125 |
$710.00 |
|||
|
||||||
5.5" dia. or larger - 4 Bladed Folding Impeller OPEN - 316SS |
16" | 1" | 55-6L16CP4-100 |
316SS | 5.5" dia. or larger 6" bulk tank and 6" IBC Tote opening |
$1485.00 |
| 16" | 1.25" | 55-6L16CP4-125 |
$1485.00 |
|||
| 16" | 1.5" | 55-6L16CP4-150 |
$1485.00 |
|||
| 16" | 2" | 55-6L16CP4-200 |
$1485.00 |
|||
| 18" | 1" | 55-6L18CP4-100 |
$1485.00 |
|||
| 18" | 1.25" | 55-6L18CP4-125 |
$1485.00 |
|||
| 18" | 1.5" | 55-6L18CP4-150 |
$1485.00 |
|||
| 18" | 2" | 55-6L18CP4-200 |
$1485.00 |
|||
| 20" | 1.25" | 55-6L20CP4-125 |
$1485.00 |
|||
| 20" | 1.5" | 55-6L20CP4-150 |
$1485.00 |
|||
| 20" | 2" | 55-6L20CP4-200 |
$1485.00 |
|||
| 24" | 1" | 55-6L24CP4-100 |
$1485.00 |
|||
| 24" | 1.25" | 55-6L24CP4-125 |
$1485.00 |
|||
| 24" | 1.5" | 55-6L24CP4-150 |
$1485.00 |
|||
| 24" | 2" | 55-6L24CP4-200 |
$1485.00 |
|||
|
||||||
6" dia. or larger - 4 Bladed Folding Impeller OPEN - 316SS |
16" | 1" | 60-9L16CP4-100 |
316SS | 6" dia. or larger | $1485.00 |
| 16" | 1.25" | 60-9L16CP4-125 |
$1485.00 |
|||
| 16" | 1.5" | 60-9L16CP4-150 |
$1485.00 |
|||
| 16" | 2" | 60-9L16CP4-200 |
$1485.00 |
|||
| 16" | 2.5" | 60-9L16CP4-250 |
$1485.00 |
|||
| 18" | 1" | 60-9L18CP4-100 |
$1485.00 |
|||
| 18" | 1.25" | 60-9L18CP4-125 |
$1485.00 |
|||
| 18" | 1.5" | 60-9L18CP4-150 |
$1485.00 |
|||
| 18" | 2" | 60-9L18CP4-200 |
$1485.00 |
|||
| 18" | *2.5" | *60-9L18CP4-250 |
$1485.00 |
|||
| 20" | 1.25" | 60-9L20CP4-125 |
$1485.00 |
|||
| 20" | 1.5" | 60-9L20CP4-150 |
$1485.00 |
|||
| 20" | 2" | 60-9L20CP4-200 |
$1485.00 |
|||
| 20" | *2.5" | *60-9L20CP4-250 |
$1485.00 |
|||
| 24" | 1" | 60-9L24CP4-100 |
$1485.00 |
|||
| 24" | 1.25" | 60-9L24CP4-125 |
$1485.00 |
|||
| 24" | 1.5" | 60-9L24CP4-150 |
$1485.00 |
|||
| 24" | 2" | 60-9L24CP4-200 |
$1485.00 |
|||
| 24" | *2.5" | *60-9L24CP4-250 |
$1485.00 |
|||
| 24" | *3" | *60-9L24CP4-300 |
$1485.00 |
|||
